Kane Snap Feeders

Kane Snap Feeders

Kane Snap Feeders are designed to feed baby pigs dry food while still in the farrowing crate.  The 2 3/4″ Low Profile Model, KSF-LP, is utilized by producers who early wean and provides easier access for younger pigs.  The standard model, KSF, is 4″ tall.

The trough area is water tight allowing the snap feeder to be used to provide milk replacer for young pigs needing a boost.

The Kane Snap Feeder is designed to fasten to all types of nursery flooring in the farrowing creep area.  The round design allows the baby pigs access from all sides.  Placement in the creep area should be done in an area that the sow’s feet won’t reach the feeder.

The spring loaded hook makes the Kane Snap Feeder easy to install and remove. An arrow on the top indicates the hook direction.


SPECIAL FEATURES INCLUDE

  • Feed Saver Lip which reduces feed waste.
  • Positive J-Hook (or optional T-Hook) locking device.
  • Push-Turn to attach and release for easy and quick installation.
  • Easy to clean.
  • Durable high density, high impact styrene and stainless hook and spring assembly.
  • Built in grill keeps pigs from getting into the trough and helps prevent feed waste.
  • KSF Sold individually or in packages of 6.
  • KSF-LP Sold individually or in packages of 12.

creep jump

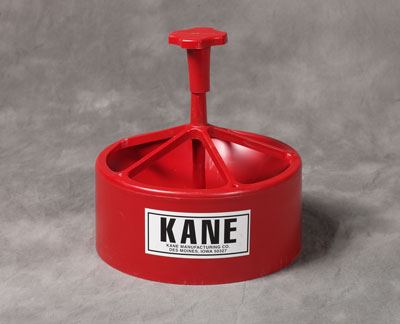

KSF Snap Feeder

KSF

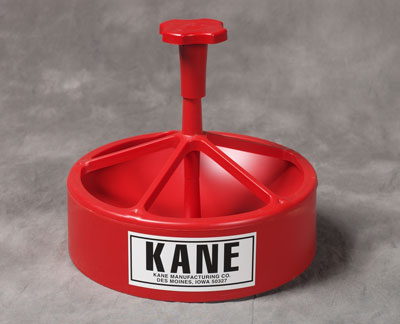

KSF-LP Snap Feeder

KSF-LP

Creep Feeders

Kane Heavy Duty Creep Tray Feeder

The Kane Heavy Duty Creep Tray is designed to get baby pigs started eating dry food in the farrowing crate, by sprinkling a handful of fresh food in the tray a few times per day.  The tray only needs to be used for 3 or 4 days, then use the Kane Creep Feeder KCF-SQ.  The trays are heavy duty so they can be used in early wean pens as well.


SPECIAL FEATURES INCLUDE

  • 1 3/4″ Feed Saver Lip to reduce feed waste
  • ABS material – won’t rust, light weight and easy to clean.
  • Built in traction ribs, helps prevent slipping and injuries.
  • Creep divider cut out.
  • Large size 18″ x 39″ provides plenty of area for two farrowing crates.
  • Heavy duty construction for early wean pens.

KCT-HD Heavy Duty Creep Tray

KCT-HD

KANE SURE START CREEP FEEDER

The Kane Sure Start Feeder is designed for starting baby pigs on a dry food diet as early as 2 to 4 days of age.  The feeder has a groove in the center that allows it to be mounted under the creep divider, which holds it in place and feeds two litters of pigs.  A very small amount of feed is placed in the tray 4 to 5 times a day for approximately 4 to 6 days.  After 4-6 days of usage it is recommended to start using Kane Creep Feeders KCF-SQ.

SPECIAL FEATURES INCLUDE

  • Made of high-density, durable polyethylene, double walled for strength.
  • No corners to cause injury to baby pigs.
  • One KPC-4 feeds 2 litters.
  • Creep divider groove holds feeder in place between crates.
  • A sure start for baby pigs on dry feed.
  • To minimize waste, feed should only cover the bottom of each section.
  • 4-6 days usage then start using Kane Creep Feeders KCF-SQ.
  • Sold individually or in packages of 12.

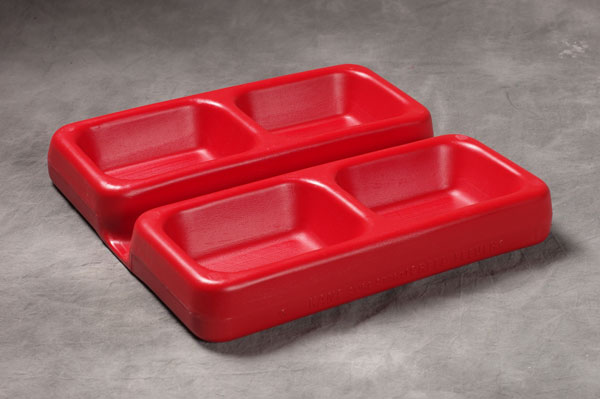

KPC-4 SURE START CREEP FEEDER

KPC-4


KANE CREEP FEEDERS KCF-SQ

The Kane Creep Feeders KCF-SQ is designed for starting baby pigs on starter feed and used until weaning.

KCF-SQ can be used for any dry feed materials, such as ground feeds, pelletized feeds or powder additives.  Made of high-density durable polyethylene that is non-corrosive, it will not rust and does not wear out.  There are no sharp corners for feed to wedge into and get stale. KCF-SQ has an adjustable meter plate for metering the amount of feed into bottom of trough.  The feed saver rolled lip on front of trough eliminates expensive feed waste.

The KCF Plastic Bracket is a mounting bracket allows the producer to put feeder in & out of crate for cleaning and filling.  The bracket is designed with locking pins on the male part of the bracket.  These 2 pins lock into the two holes in the female part of the bracket that is mounted on the panel.  This stops pigs from knocking the feeder out of the bracket.

The KCF-SQ is designed to mount on end panels or divider panels of farrowing crates.

nursery jump

SPECIAL FEATURES INCLUDE

  • Non corrosive, non-caking, non-rusting, long lasting.
  • Feed flow adjustment panel.
  • Rolled lip for feed savings.
  • Minimal loss of feed.
  • No sharp corners.
  • Easy cleaning.
  • Convenient mounting bracket (KCF-BR-PL).
  • Feeds baby pigs up to 6 weeks of age maximum.
  • Sold individually or in packages of 10.

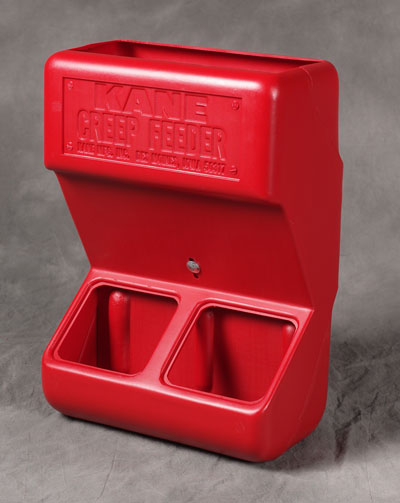

KCF-SQ CREEP FEEDER

KCFSQ

KCF-BR-BL Mounting Bracket

KCF-BR-BL

Kane Nursery Feeders

KANE nursery FEEDERs

Kane PNF and DPNF Nursery Feeders are made of high-density, durable polyethylene with 304 stainless steel grills. These feeders are designed to feed three pigs per hole from weaning up to 60 lbs./27 kg.

Install feeders into fencing and use as a gate or mount directly to the fence or wall. The feed-flow panel is ridged but pliable and works with the pig’s natural tendency to agitate. The panel is easily adjusted with oversized knobs conveniently located at the top of the feeder. This design allows you to keep the panel low to maximize feed consumption and minimize waste.

Our solid, non-porous surface is easy to clean reducing the presence of bacteria and significantly cutting costs associated with cleaning and maintenance.

special features include

  • Non-rusting, non-corrosive, non-caking, high density durable polyethylene.
  • Ridged feed-flow panel.
  • 304 stainless steel grills.
  • No sharp corners.
  • Cleaning takes 1/3 time as metal style feeders.
  • Feeds pigs up to a maximum weight of 28 kg.
  • Recommend 3 pigs per hole.
  • Feeders can be installed in fencing and used as gate, fastened to fence or wall.

Capacity of PNF’s:

PNF-18 3 holes 58 lbs/26 kg
PNF-24 4 holes 72 lbs/32 kg
PNF-30 5 holes 87 lbs/40 kg
PNF-36 6 holes 102 lbs/46 kg
PNF18-200x208 PNF24-200x208 PNF30-208x200 PNF36-208x200

rotary jump

Capacity of DPNF’s:

DPNF-24 8 holes 204 lbs/91 kg
DPNF-36 12 holes
290 lbs/130 kg
DPNF24-200x251 DPNF36-200x251

Rotary Feeders

KANE Rotary FEEDERs

Kane Rotary Feeders provide positive feed savings. The top adjustment has a locking device, which assures that the adjustment stays exactly where the operator sets it.  The hopper has a inter cone that adjusts down to the feed pan cone which controls the feed flow.  A cross bar just above inner cone works as a feed agitator and keeps feed from bridging.  The hopper and feed pan are made of high-density durable polyethylene.  Heavy duty 304 stainless steel angle pan ring, feed opening dividers, upper divider ring, bolts and lock nuts are stainless steel.  Also bumpers for rotating hopper are 304 stainless steel.

Kane Rotary Feeders are designed for extra feed savings in automatic feed filling systems and hand filled operations.

Manufactured of the highest quality materials for many years of service in the pig industry through out the world.

special features include

  • Feed adjustment locking device allows positive feed flow.
  • 5 bushel/100 kg capacity
  • Feed pan is 4 inch/10 cm deep with wide angle frame for extra feed savings.
  • Bumpers for rotating hopper, bolts & lock nuts are 304 stainless steel.
  • Feed pan 34 inch/86 cm diameter, 10 holes-13 inch/20 cm wide for maximum feeding capacity.
  • 10 hole designed to handle pigs from 35 lbs/18 kg to 125 lbs/57 kg.
  • 8 hole feeder 35 lbs/18 kg to market
  • Suggested 40 to 60 pigs per feeder or the number of pigs per hole you desire.
  • Fence dividers available for fence line installation (2 pens)
  • Galvanized lid optional.

KRF-34-5 rotary feeder

KRF-34
KRF-34 TOP

KRF-44-10 rotary feeder

KRF44-10

KRF-34-5 rotary feeder

KRF-34-5 rotary feeder is also designed for use as a finishing feeder.  When used for finishing it has 8 holes that are 11 inch/28 cm wide, which provides necessary head space. Handles pigs from 35 lbs/18 kg to finish (market weight) all features are same as above.

KRF-34-5W rotary wet & dry feeder has the same features as above, except it has a 304 stainless steel 6 nipple upper divider ring with riser for easy water supply hookup.  The unique pan design creates no obstruction to continuous feed flow.

special features include

KRF-44-10, rotary feeder has the same features as the KRF-34-5 feeder, as well as the following:

  • 10 bushel/200 kg capacity
  • 10 holes, 8 inch/33 cm wide for maximum pig capacity.
  • Unique hopper inner cone design allows smallest pigs to operate this feeder.
  • Tight lid keeps feed fresh and sanitary.
  • Handles pigs from 35 lbs/16 kg to finishing(market weight)
  • Available – wet/dry with 304 stainless steel, 4 nipple upper divider ring with riser for easy water supply hookup.
